Brief introduction:

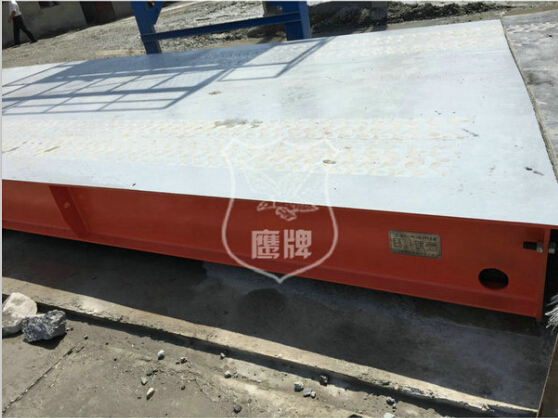

SCS series electronic motor truck scale is formed by scale platform, sensor, inhibiting device, junction box, transmission cable and weighing instrument. Weighing platform adopts full steel building block design with features of low platform, beautiful appearance and convenient for installation and maintenance.

Main components:

U-shape beam scale, digital weighing sensor, digital junction box, digital weighing display

Common used units:

10 tons, 15 tons, 20 tons, 30 tons, 50 tons, 60 tons, 80 tons, 100 tons, 120 tons, 150 tons, 200 tons

Basic function:

Adoption RS458 standard interface and digital sensor to realize communication;

Maximum signal transmission distance: 1200m;

Manual and automatic unbalance loading regulation through instrument panel;

Automatic trouble diagnosis function;

Storage of 256 records, 256 wagon numbers and cargo numbers;

Data protection time under power-off≥ 5000h;

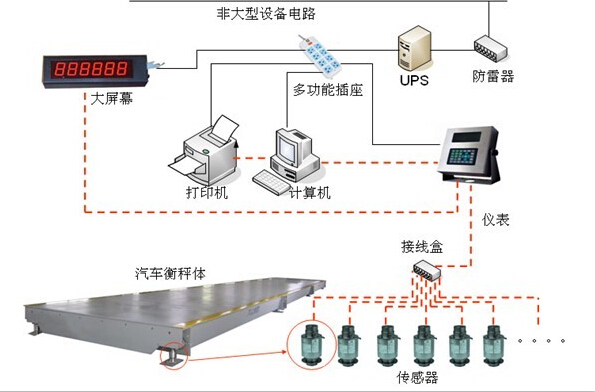

Work flow:

Features and advantages:

Digital technology:
Weighing sensor adopts high integrity high intelligence treatment system;

Self compensating on nonlinearity, lag, creep deformation and temperature performance of weighing sensor;

Excellent memory capacity avoids calibration problem after sensor change.

Digital communication technology:
It adopts RS485 bussing technique to realize remote transmission of weighing signal;

Output signal can reach 3-4V;

It improves lightning protection capacity;

Bridge type technology:
It adopts double beam structure and has excellent anti-yawing force and shock resistance;

Excellent resetting capacity;

Convenient for on-site installation;

Protection technology:
Level of protection: IP68 in GB4942.2 standard

Intelligent weighing system: V13.0
Accuracy class: 01ML (III)
Maximum weight: 1 - 150t
Table size: length 3-21M width 3-3.4M (specific table size can be an actual need for customers design)
System operating voltage: AC 187 ~ 242v 49 ~ 51hz
Relative humidity: 20% ~ 90%rh
Digital display of gross and net weight, tare
Dynamic, under load and overweight status display
Digital filtering, automatic zero tracking
Sensor protection level IP68
Weighing display controller -10 ~ 40
Weighing part -40 ~ 70
